MODEL |

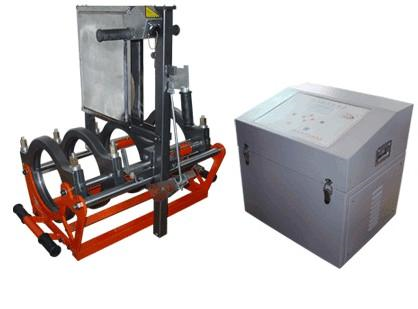

FDE 450 |
|
|
Pipe Size(mm) |
280, 315, 355, 400, 450 |
|
|
Heating Plate Max. Temp. |
270℃ |
|
|
Temp. deviation |
±5℃ |
|
|
Pressure adjustable Ranges |
0-10Mpa |
|
|
Voltage |
～380V |
|
|
Power frequency |
50Hz |
|
|
Heating plate power |
5.2KW |
|
|
Planing toolr Power |
1.5KW |
|
|
Hydraulic unit power |
1.5KW |
|
|
Total power |
8.2KW |
|
|
Weight |
390kgs |
|
|
Packing Dimension (cm*cm*cm) |
Basic frame |
148*91*105 |
|
Hydraulic Unit |
74*49*62 |
|
|
Control box |
86*100*123 |
|
