MODEL |

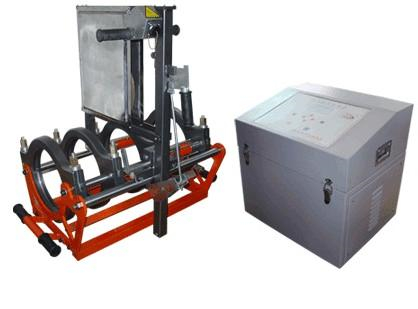

FDE 250 |
|
|
Pipe Size(mm) |
90,110,125,140,160,180,200,225,250 |
|
|
Heating Plate Max. Temp. |
270℃ |
|
|
Temp. deviation |
±5℃ |
|
|
Pressure adjustable Ranges |
0-10Mpa |
|
|
Voltage |
～220V |
|
|
Power frequency |
50Hz |
|
|
Heating plate power |
0.93KW |
|
|
Diameter Heating plate |
190mm |
|
|
Thickness Heating plate |
20mm |
|
|
Planing toolr Power |
0.701KW |
|
|
Overall Cylinder Section |
13.11CM2 |
|
|
Hydraulic unit power |
0.75KW |
|
|
Total power |
3.55KW |
|
|
Weight |
130kgs |
|
|
Packing Dimension (cm*cm*cm) |
Basic frame |
110*41*45 |
|
Hydraulic Unit |
69*46*46 |
|
