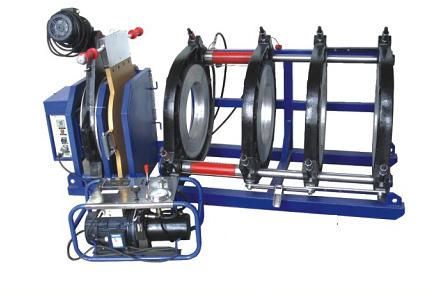

MODEL |
FDC 450 |
|
|
Pipe Size(mm) |
280,315,355,380,400,450 |
|
|
Heating Plate Max. Temp. |
270℃ |
|
|
Temp. deviation |
±5℃ |
|
|
Pressure adjustable Ranges |
0-6Mpa |
|
|
Voltage |
～380V |
|
|
Power frequency |
50Hz |
|
|
Heating plate power |
5.2KW |
|
|
Diameter Heating plate |
480mm |
|
|
Thickness Heating plate |
25mm |
|
|
Planing tool Power |
1.5KW |
|
|
Hydraulic unit power |
1.5KW |
|
|
Total power |
1.5KW |
|
|
Weight |
410KGS |
|
|
Packing Dimension (cm*cm*cm) |
Basic frame |
128*86*84 |
|
Support |
91*51*110 |
|
|
Hydraulic Unit |
71*49*47 |
|
