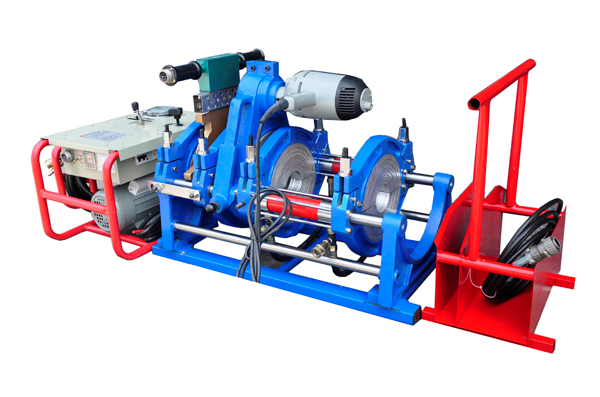

MODEL |
FDC 250 |
|
|
Pipe Size(mm) |
90,110,125,140,160,180,200,225,250 |
|
|
Heating Plate Max. Temp. |
270℃ |
|
|
Temp. deviation |
±5℃ |
|
|
Pressure adjustable Ranges |
0-6.3Mpa |
|
|
Voltage |
～220V |
|
|
Power frequency |
50Hz |
|
|
Heating plate power |
1.88KW |
|
|
Planing tool Power |
1.1KW |
|
|
Diameter Heating plate |
280mm |
|
|
Thickness Heating plate |
24mm |
|
|
Hydraulic unit power |
1.5KW |
|
|
Total power |
4.48KW |
|
|
Weight |
175KGS |
|
|
Packing Size (cm*cm*cm) |
Basic frame |
95*52*50 |
|
Support |
54*52*65 |
|
|
Hydraulic Unit |
71*49*47 |
|
